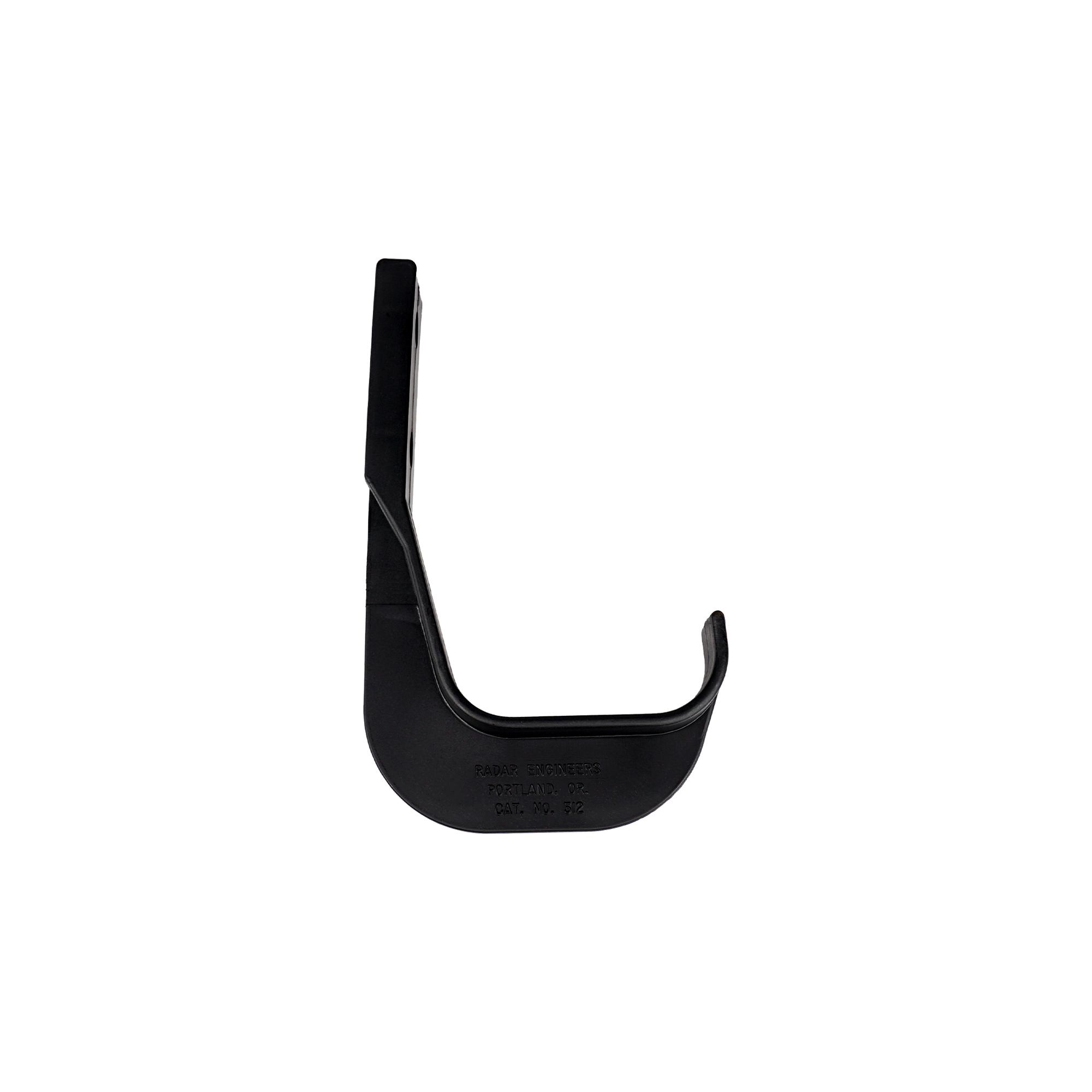

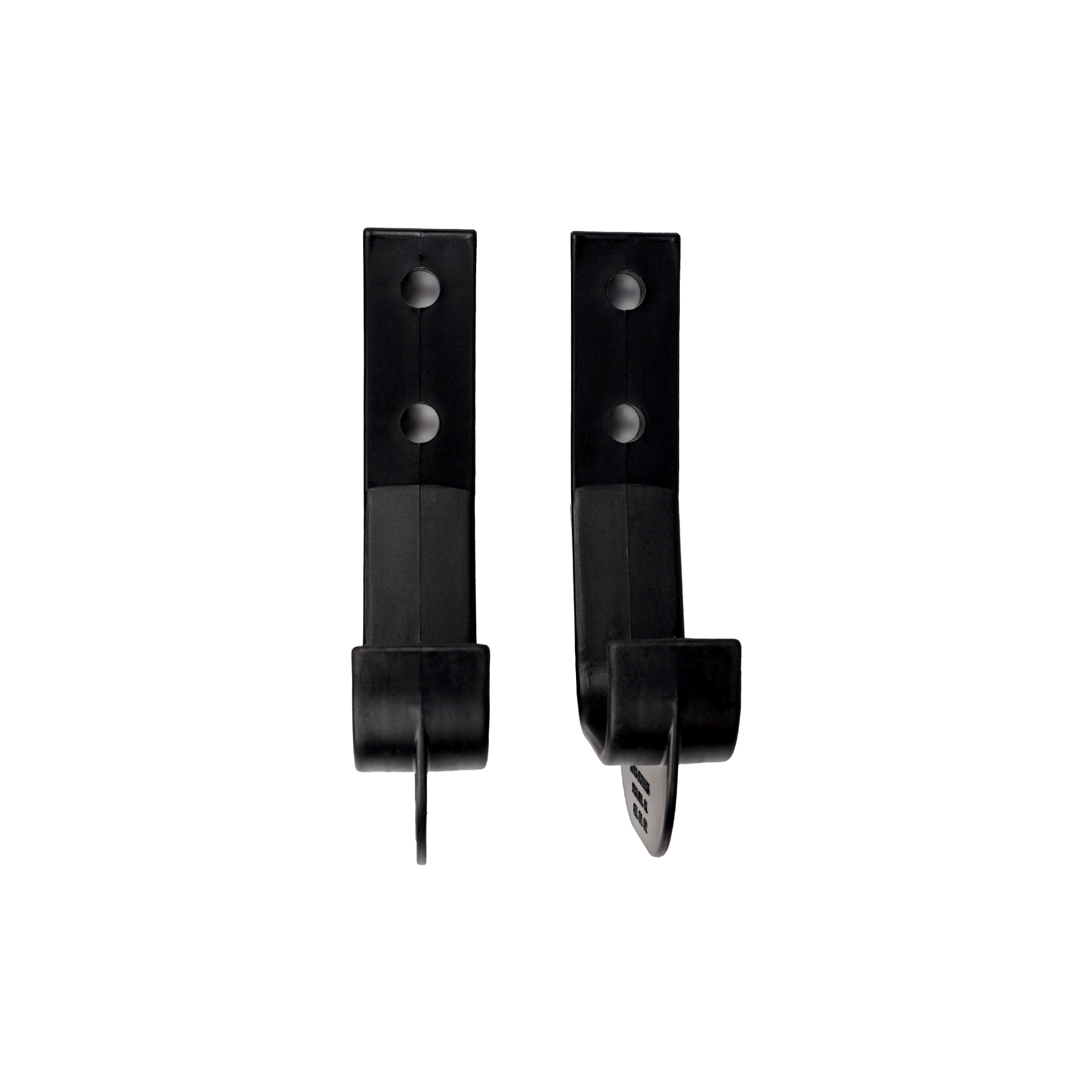

Model 512
VAULT CABLE BRACKET
The Model 512 is engineered to provide strong, reliable cable support in vaults and manholes where runs need reinforcement. By eliminating the need for grounding and insulators, these brackets simplify underground cable installation while ensuring secure, long-term performance.
Constructed from glass-filled nylon, the bracket is lightweight, nonconductive, and resistant to the chemical and temperature extremes commonly found in vault environments. Its rounded edges protect cable jackets from abrasion, while the durable design maintains structural integrity under evenly distributed loads.
Features
- Non-rusting, nonconductive material
- No grounding or insulators required
- Resistant to harsh chemical and temperature conditions
- Rounded edges prevent cable abrasion
- Lightweight yet sturdy construction
Specifications
- Material: Glass-filled Nylon, Black finish
Mechanical Dimensions
- Dimensions: 4.75 x 1.48 x 7.52″
- Standard Package: 50 per package (approx. 13 lb.)
- Load Limit: 120 lbs (short-term) / 90 lbs (working life)
